Product Center

Ready-to-use residential & mobile systems + scalable C&I and container BESS. Specs are taken directly from the manufacturer catalog.

Browse Full Catalog

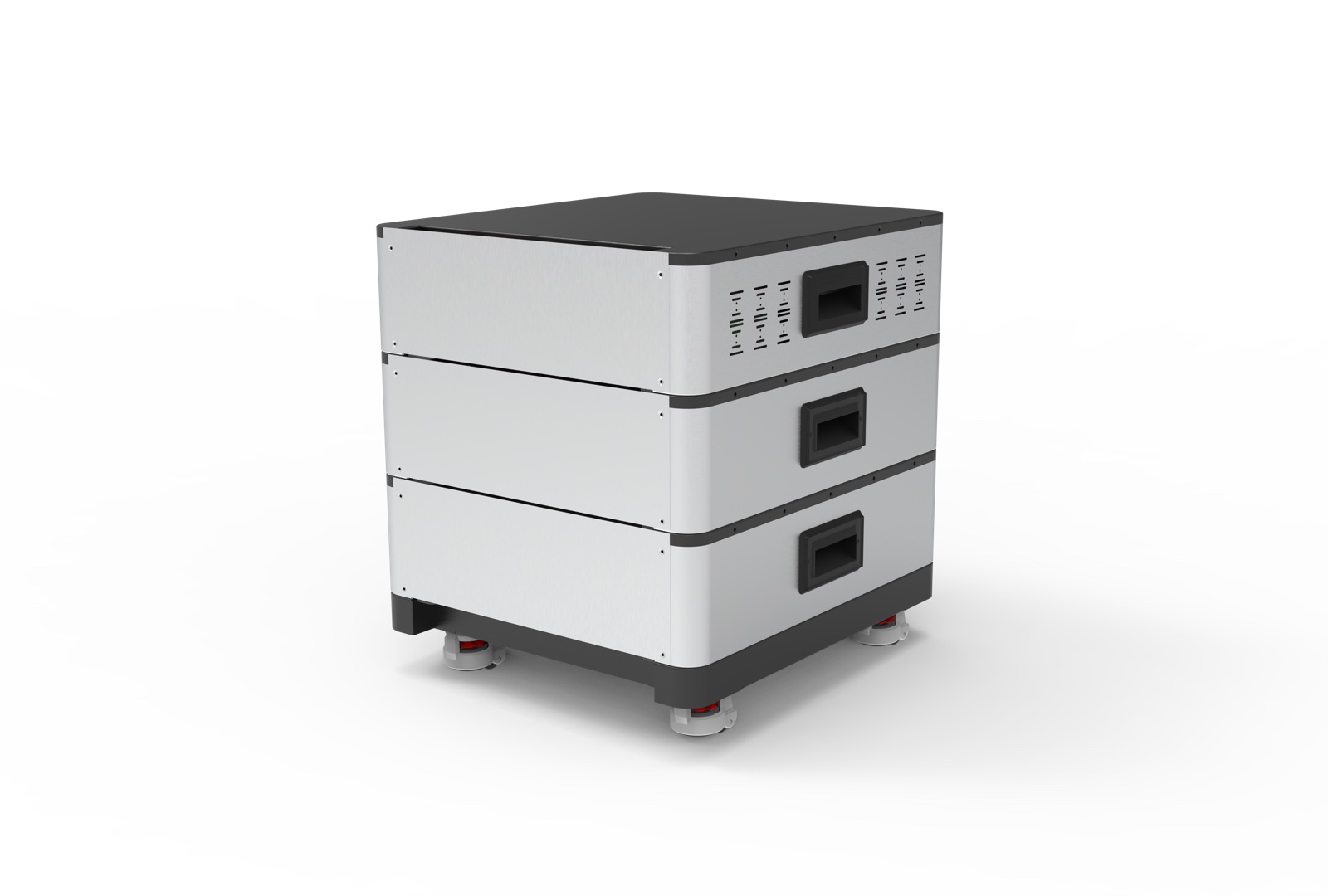

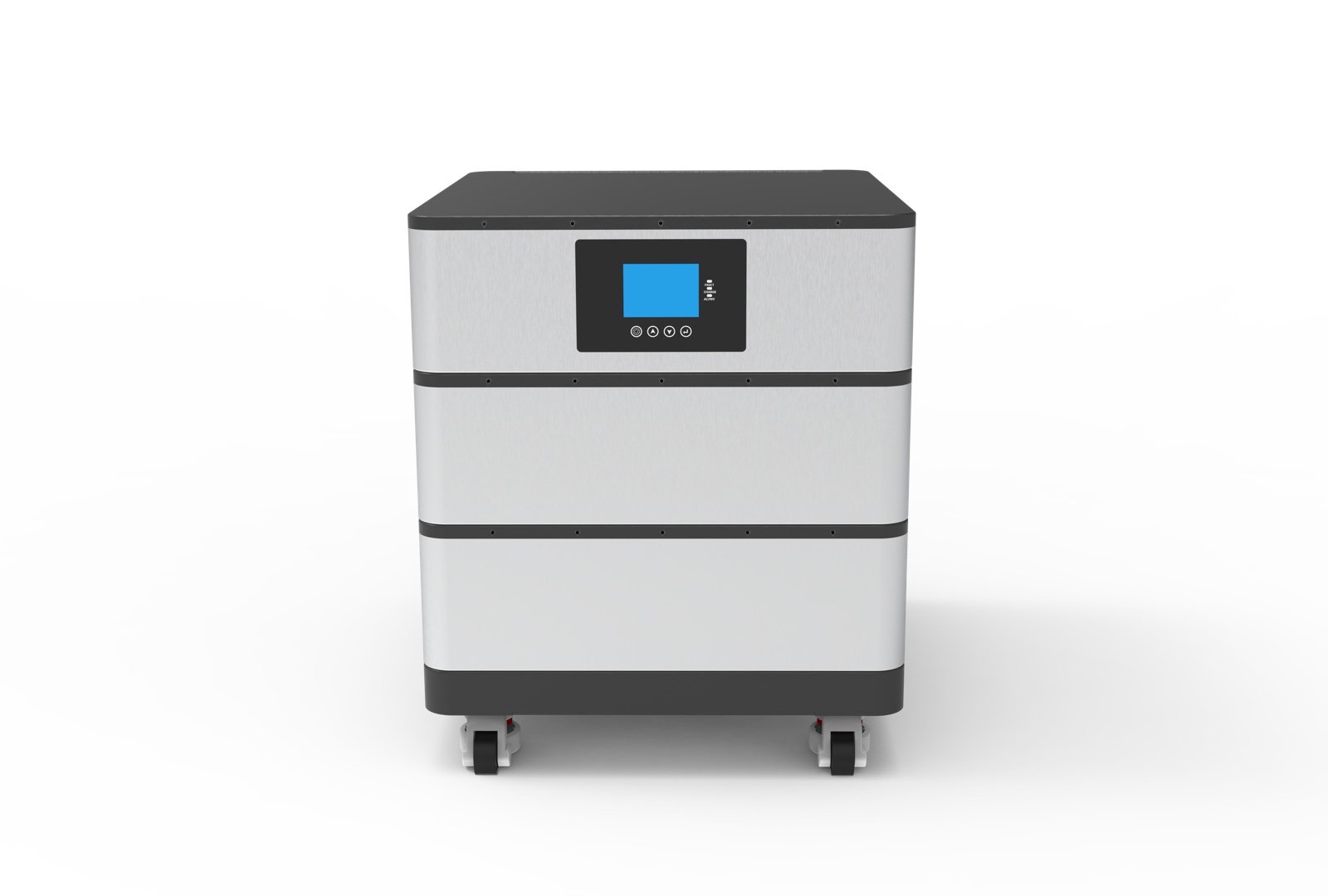

NovaBESS HomeStack modular stackable battery system

From manufacturer catalog: stackable 5/10/15 kWh modules

Residential · Modular

HomeStack — Stackable ESS

Stack battery modules to match your home or small business. Each module is 5 kWh; combine up to 12 modules (60 kWh total) for villas, workshops, mini-grids and off-grid sites.

Request Quote
Capacity5 / 10 / 15 kWh per stack
Max parallel12 stacks → 60 kWh
Nominal voltage51.2 V
Voltage range43.2 – 58.4 V
Max continuous current100 A
Cell chemistryLFP (lithium iron phosphate)
Operating temp-25°C to +50°C
EnclosureIP54
CommunicationCAN / RS485
CertificationUN38.3

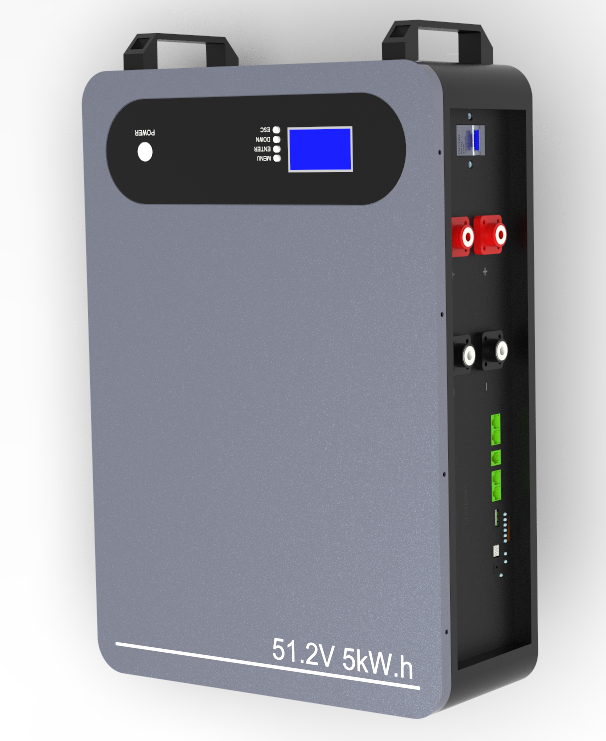

NovaBESS HomeWall 48V 5kWh wall-mounted battery front view

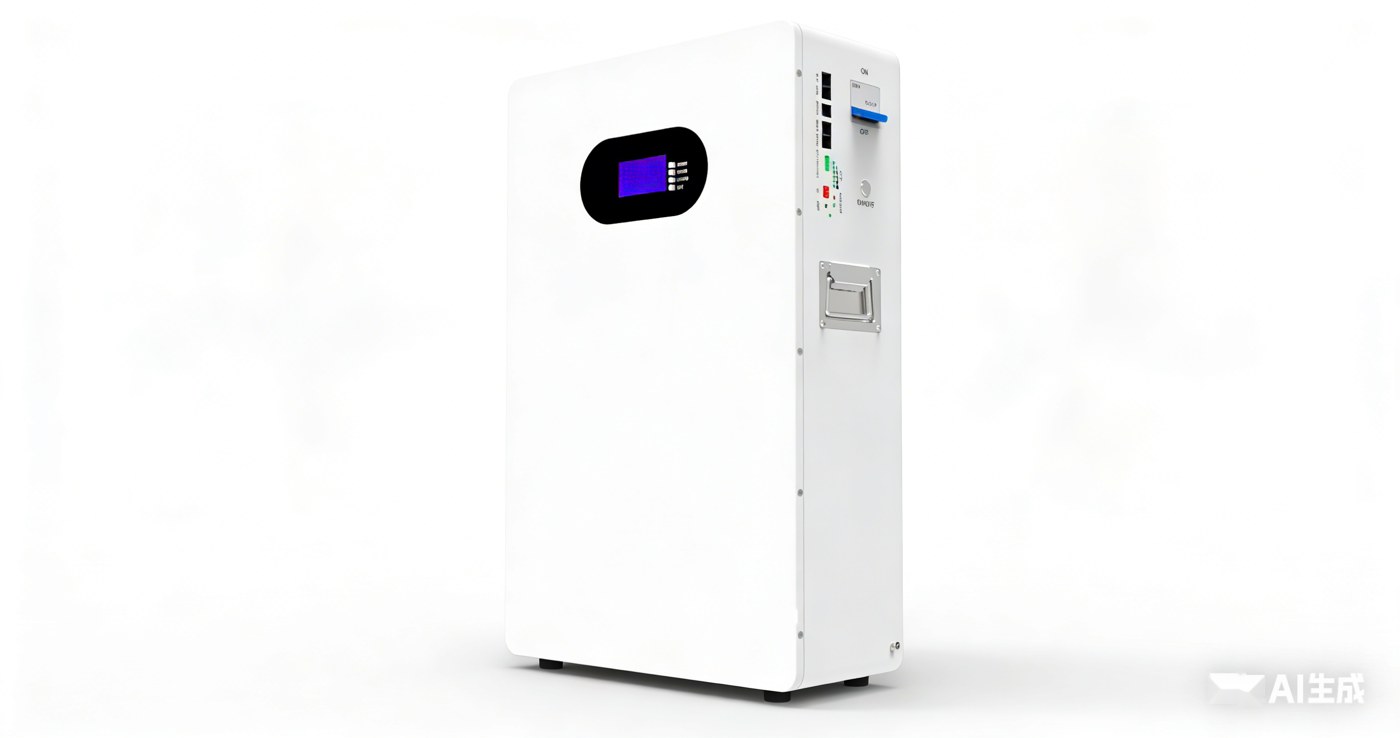

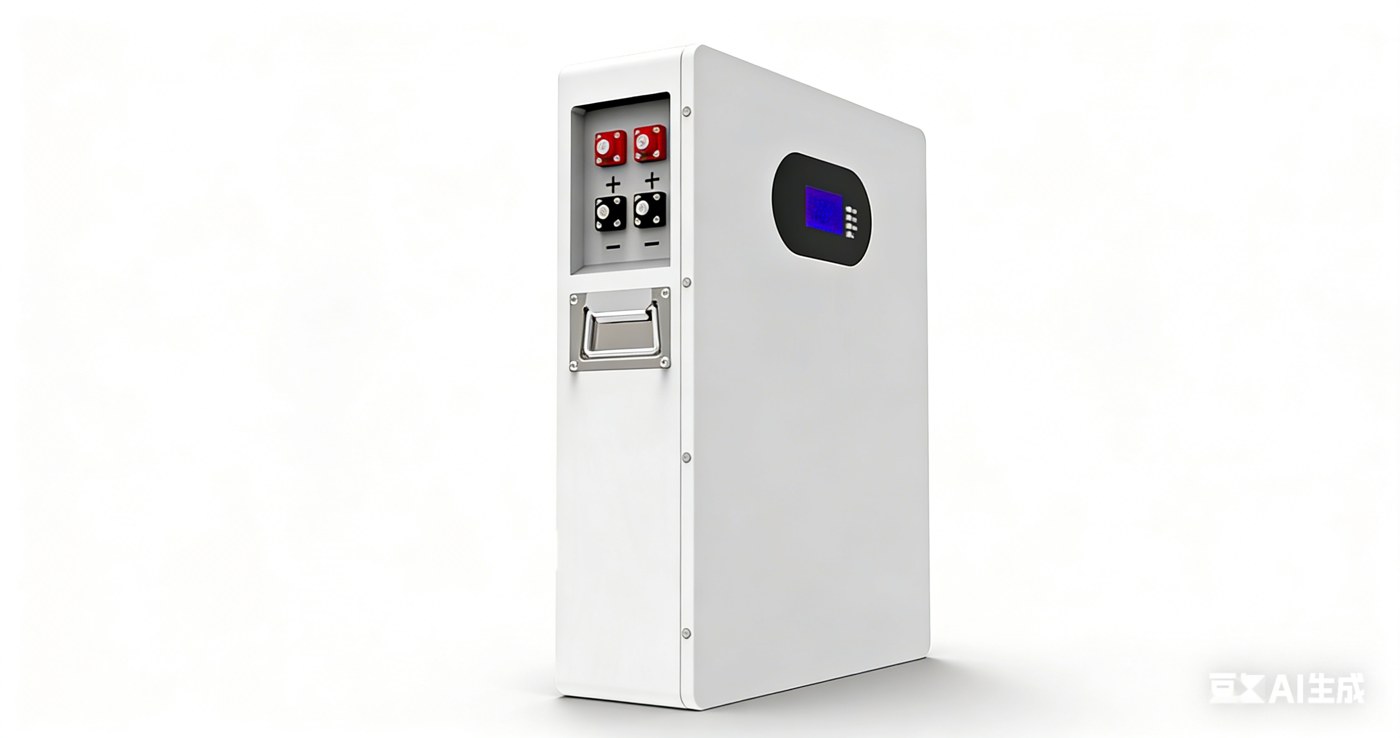

HomeWall front view thumbnail

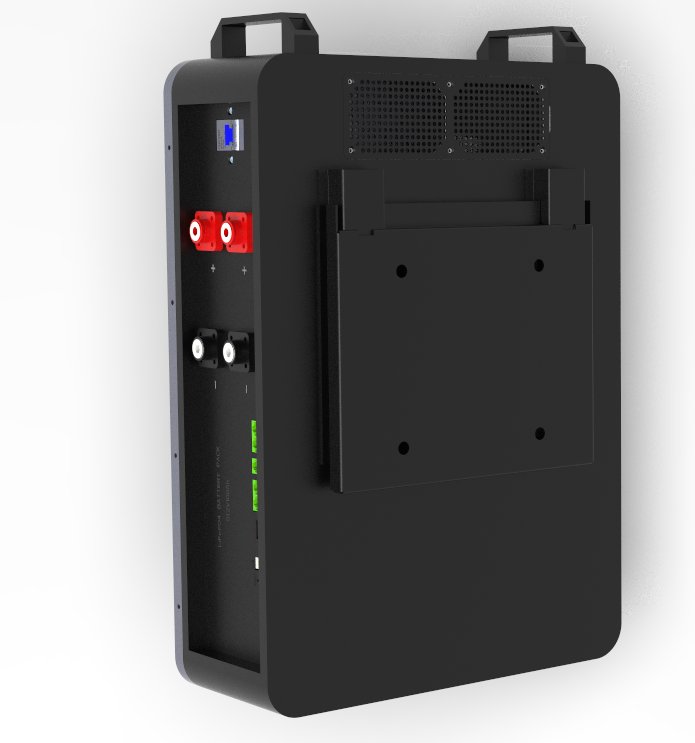

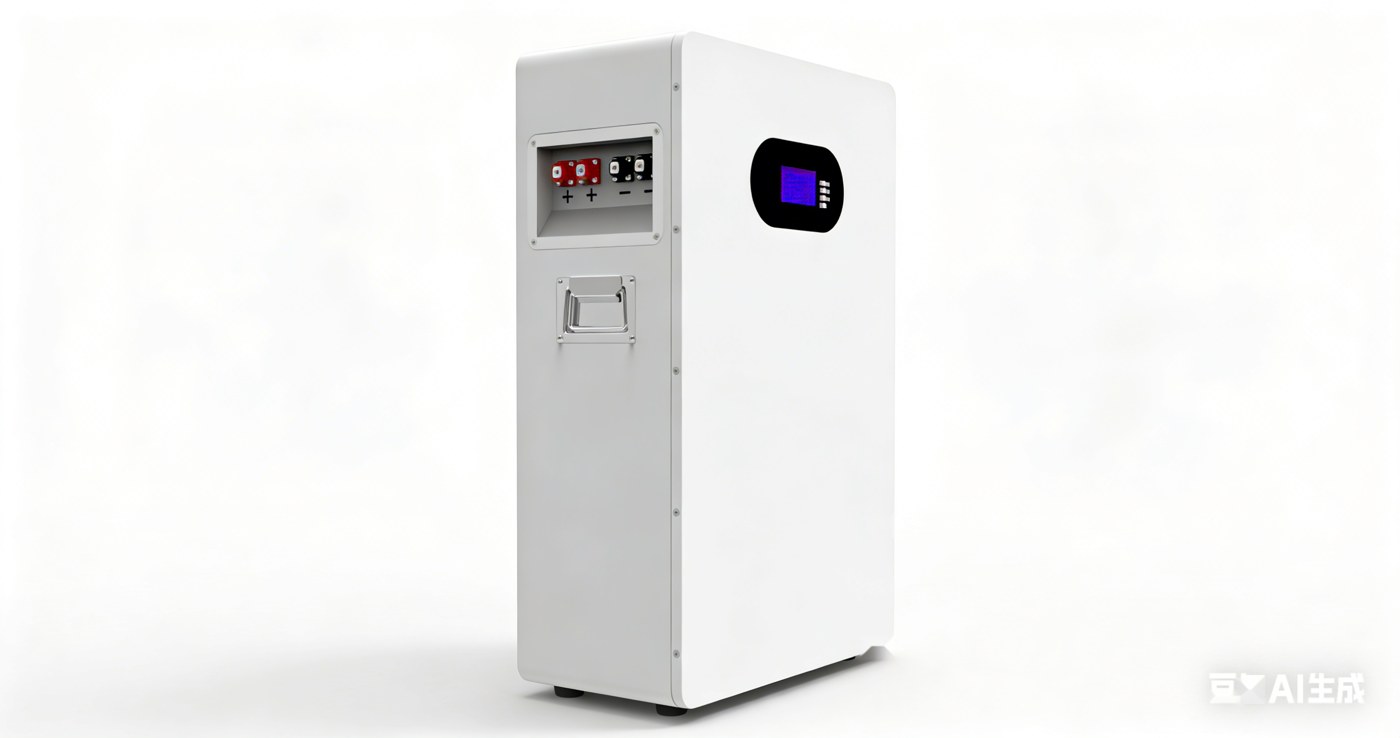

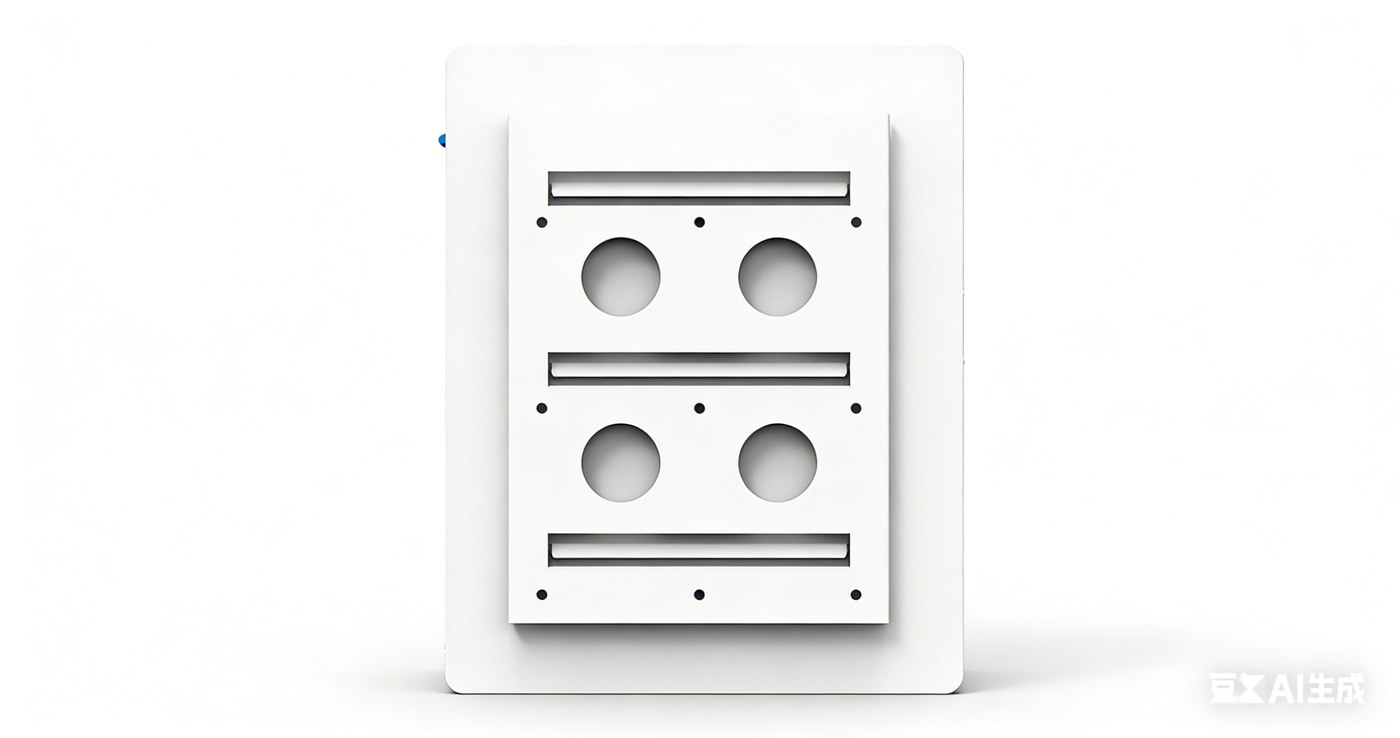

HomeWall back terminal view thumbnail
HomeWall installed in living room thumbnail

Actual unit photos + catalog lifestyle shot

Residential · Space-Saving

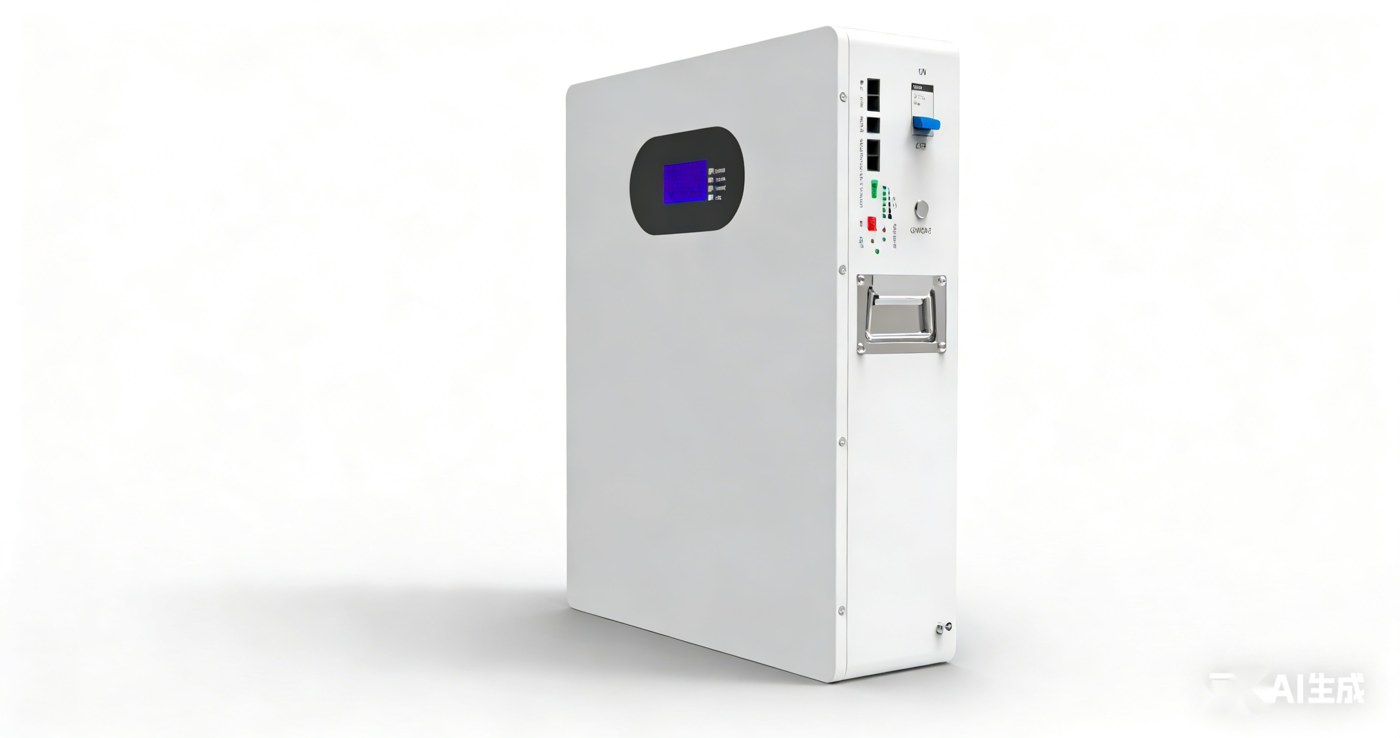

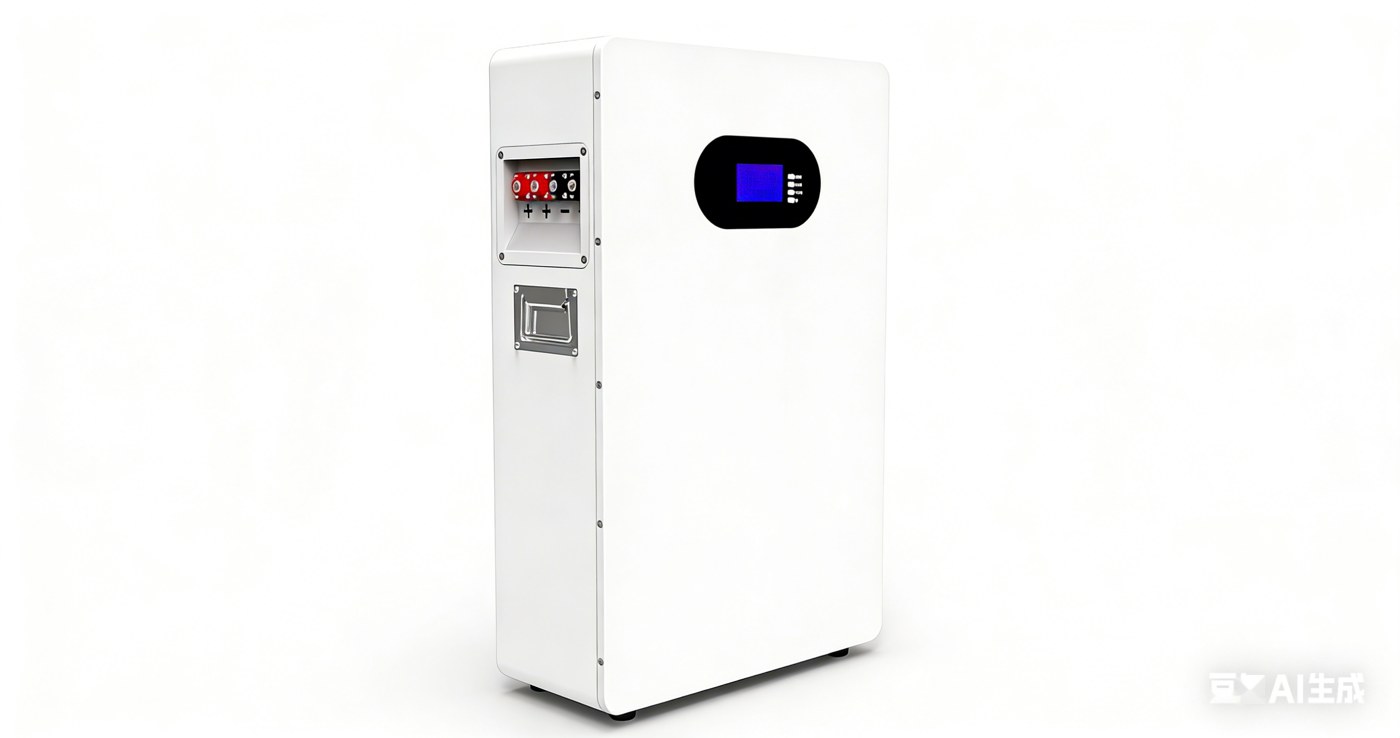

HomeWall — Wall-Mounted

Wall-mounted battery for apartments, small homes and retail shops. Ultra-slim, quiet and easy to retrofit. Works standalone or with rooftop solar for self-consumption.

Request Quote
Capacity2.5 / 5.1 / 10.2 kWh
(50 / 100 / 200 Ah)
Nominal voltage48 V
Voltage range43.2 – 58.4 V
Max discharge current50 / 100 / 200 A
Cycles5000 @ 80% DoD, 25°C
Weight28 / 65 / 103 kg
Dimensions (W×D×H)450×300×175 / 580×450×210 / 580×760×210 mm
EnclosureIP54
DisplayLCD
Design life15 years
ParallelUp to 15 units
CertificationCE · UN38.3 · UL · IEC
NovaBESS PowerBox wheeled industrial portable power station on construction site

From manufacturer catalog: 4/8/16 kWh portable power station

Industrial · Mobile

PowerBox — Industrial Mobile Power

Wheeled, plug-and-play mobile power for construction sites, mines, telecom towers, rural clinics and emergency repair. No grid connection needed.

Request Quote
Capacity4.02 / 8.04 / 16.08 kWh
Voltage12.8 / 25.6 / 51.2 V
Power500 / 1000 / 1500 W
Cell type314 Ah LFP
Discharge depth80% – 100%
CoolingAir-cooled
Noise≤75 dB(A)
Weight26 / 57 / 100 kg
MobilityWheeled portable
Operating temp-25°C to +50°C
CertificationCE · UN38.3 · UL · IEC

Commercial & Industrial BESS

For factories, commercial buildings, solar farms, microgrids and utility projects. Higher capacity, custom engineering and local installation support required.

C&I · Air-Cooled

Air-Cooled Storage Cabinet

Air-cooled commercial energy storage cabinet
DC voltage672 – 864 V
AC voltage400 VAC
CoolingAir-cooled, fan replaceable
FeaturesMulti-cabinet parallel, digital QC
CertificationISO 9001, 泰尔认证
Request C&I Quote
C&I · Liquid-Cooled

Liquid-Cooled Storage Cabinet

Liquid-cooled commercial energy storage cabinet
Capacity per cabinet200 – 1000 kWh
DC voltage728 – 949 V
AC voltage400 VAC
Round-trip efficiency≥95%
Cell typeLFP 314 Ah
Request C&I Quote
Utility · Container

Container BESS

40ft container energy storage system
ContainerISO 40 ft, sea/rail/road ready
Typical capacity125 kW / 261 kWh modules, scalable
DC voltage806.4 – 1228.8 V
ApplicationsGrid, C&I, renewable, microgrid
InstallationOutdoor, foundation only
Request Project Quote

Need the full catalog?

Download the manufacturer PDF or flip through every page online.

Download PDF Catalog View Pages Online
